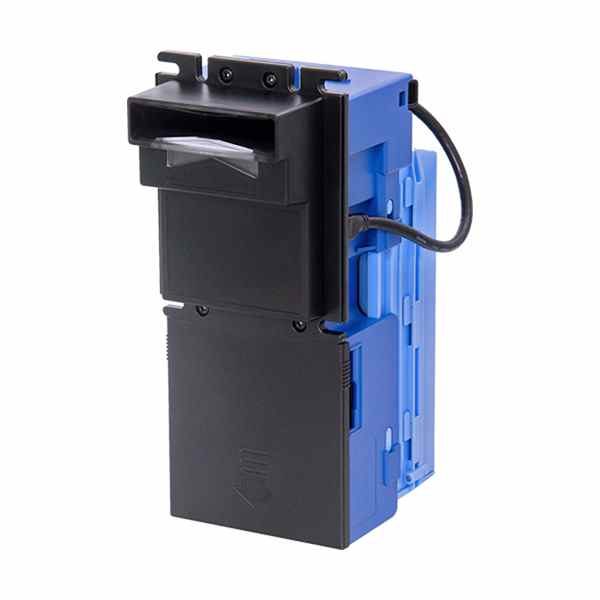

ICT XBA-14DNPUS6 Bill Acceptor
The ICT XBA-14DNPUS6 is an XBA bill acceptor with wide-angle insertion technology and support for firmware updates.
The ICT XBA-14DNPUS6 is an XBA Series bill acceptor configured with a 12V pulse configuration, standard bezel, and 400-note stacker box. Its wide-angle banknote insertion technology, strong ambient-light immunity, and optical-mechanical anti-fishing structure support cash acceptance in equipment where light conditions and transaction security matter. A built-in USB port enables firmware upgrades by USB flash drive, and the unit includes auto-calibration technology with a multi-color optical sensor.
This model is backed by E & D Trading, an authorized ICT distributor and authorized service center. We help with currency-set and programming questions before purchase, repair units in house, and ship nationwide. Our team has supported cash-handling equipment for over 30 years. Fitment assistance is available before shipping.
Key points
- 400-note stacker box with standard bezel for the listed model configuration
- High immunity against strong ambient light for the listed model configuration
- Optical-mechanical anti-fishing structure for the listed model configuration
- Firmware upgrades via USB flash drive for the listed model configuration
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideSP1-V & XBA Combo Installation Guide (EN) PDF · 4.2 MB
- Installation guideXBA Installation Guide (EN) PDF · 4.1 MB
- Installation guideXBA Quick Start Guide (EN) PDF · 3.8 MB
- Installation guideXBA-mini Installation Guide (EN) PDF · 4.0 MB
- DIP switch settingsXBA mini-KRW8 (KRW4+USD4) — ICT104U PDF · 215 KBRead as a table
- DIP switch settingsXBA mini-MXN8 (MXP4+USD4) — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 442 KBRead as a table
- DIP switch settingsXBA mini-UMR12(USD6+MYR6) — PULSE+ICT104U PDF · 370 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT-BC+Pulse PDF · 35 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 424 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Special Pulse PDF · 38 KBRead as a table
- DIP switch settingsXBA-41X (EUR6+GBP3+IND7+USD6) — ICT108U PDF · 133 KBRead as a table
- DIP switch settingsXBA-42X24 (CNY6+LAK8+THB4+USD6) — ICT108U PDF · 394 KBRead as a table
- DIP switch settingsXBA-82X31 (AUD5+CNY6+EUR4+GBP2+JPY4+RUB5+SGD4+USD6) — ICT108U PDF · 135 KBRead as a table
- DIP switch settingsXBA-83X37 (CHF4+CNY6+EUR4+GBP2+JPY4+RUB5+TRY6+USD6) — ICT108U PDF · 136 KBRead as a table
- DIP switch settingsXBA-EUR9 (EUR4+USD5) — MDB PDF · 391 KBRead as a table
- DIP switch settingsXBA-TXY6 (EUR1+TRY3+USD2) — ICT104U+ICT104V+MDB+Pulse PDF · 460 KBRead as a table
- DIP switch settingsXBA-TXY9 (EUR3+TRY3+USD3) — ICT104U+ICT104V+MDB+Pulse PDF · 513 KBRead as a table
- DIP switch settingsXBA-UCD7 (USD3+CAD3) — ICT002U+ICT104U+ICT104V+MDB+Pulse PDF · 467 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+ Special Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ICT002U+ICT104U+ICT104V+MDB+Pulse PDF · 440 KBRead as a table
- DIP switch settingsXBA-USD6 — NISR+Pulse PDF · 413 KBRead as a table
- DIP switch settingsXBA-USD6 — ccNet+ICT104U+ICT106U+MDB+Pulse PDF · 146 KBRead as a table
- DIP switch settingsXBA-USD6 — ccTalk+ICT104U+NISR+Pulse+RS232 A0 PDF · 548 KBRead as a table
- BrochureSP1-V+Combo- Brochure (EN) PDF · 374 KB
- BrochureXBA Brochure (EN) PDF · 332 KB
- BrochureXBA-mini Brochure (EN) PDF · 368 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
