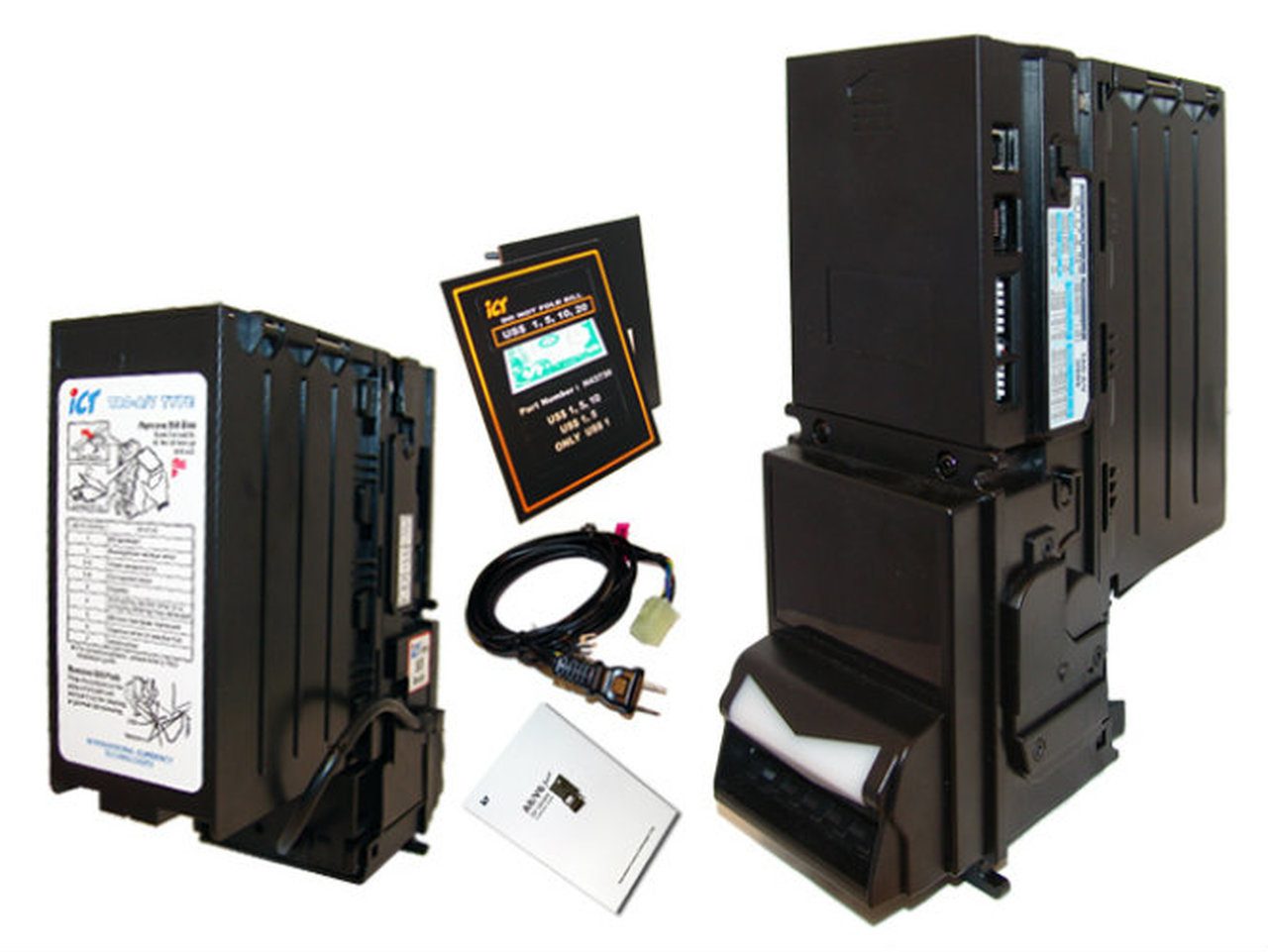

ICT TAO-A2PA5-USD6B Bill Acceptor
The ICT TAO-A2PA5-USD6B is a 12V DC bill acceptor with a 500-note stacker and frame mounting kit.
The ICT TAO-A2PA5-USD6B is a 12V DC bill acceptor with a 500-note stacker, standard bezel, and listed frame mounting kit. It accepts the recorded US bill denominations in four directions and has a lockable removable bill cassette. The source lists roughly three-second validation including bill stacking, Flash ROM software updates, and Pulse, 5V ENABLE, ICT Protocol, NISR, and USB interfaces.
E & D Trading has more than 30 years of experience as an authorized ICT distributor and authorized service center. We can assist with application fitment, interface review, programming, and currency-set support before purchase. If a TAO-A2 unit needs attention later, our in-house technicians provide repair services and nationwide support for mailed-in equipment.
Key points
- 12V DC bill acceptor configuration
- 500-note stacker with standard bezel
- Frame mounting kit listed
- Lockable removable bill cassette
- Flash ROM updates and multiple interface options
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
