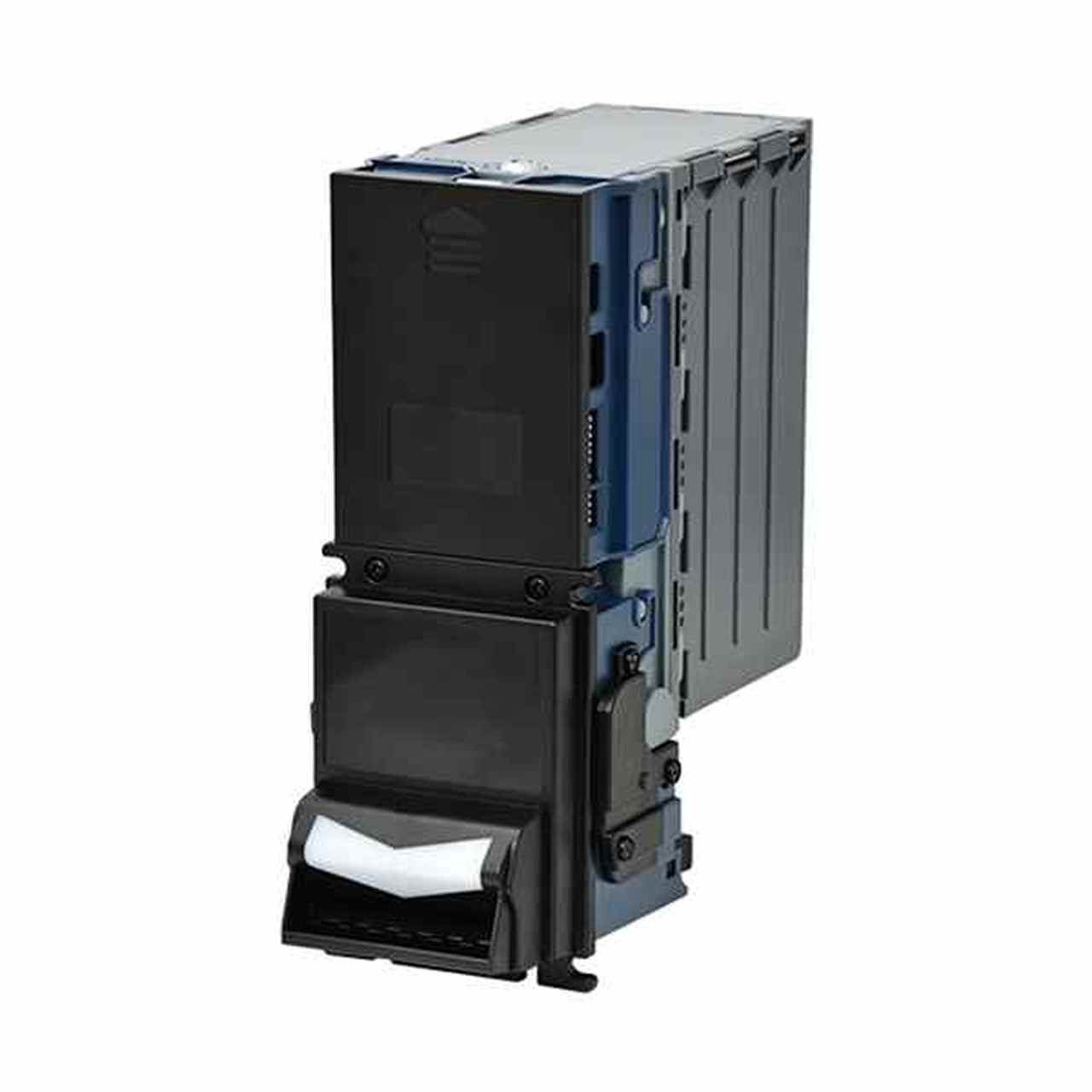

ICT TAO-A1PB5-USD6B Bill Acceptor
The ICT TAO-A1PB5-USD6B is a bill acceptor with a 500-note stacker for high-value, high-security applications.
ICT TAO-A1PB5-USD6B is a 110V to 117V AC bill acceptor with a 500-note stacker and standard bezel. It accepts the listed US bill denominations in four directions and includes a lockable removable bill cassette. The unit is listed with approximately three-second validation including stacking, Flash ROM updates, and interface options covering Pulse, 5V ENABLE, ICT Protocol, NISR, and USB.
Choose E & D Trading for authorized ICT distribution and authorized service center assistance built on more than 30 years of experience. We can review the TAO-A configuration, help with programming or currency-set questions, and explain interface considerations. In-house repair is available for applicable TAO equipment, with nationwide support for parts and units submitted to our service team.
Key points
- 500-note stacker and standard bezel
- Lockable removable bill cassette
- Four-way insertion for listed US bill denominations
- Approximately three-second validation including stacking
- Multiple listed interface options including USB
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
