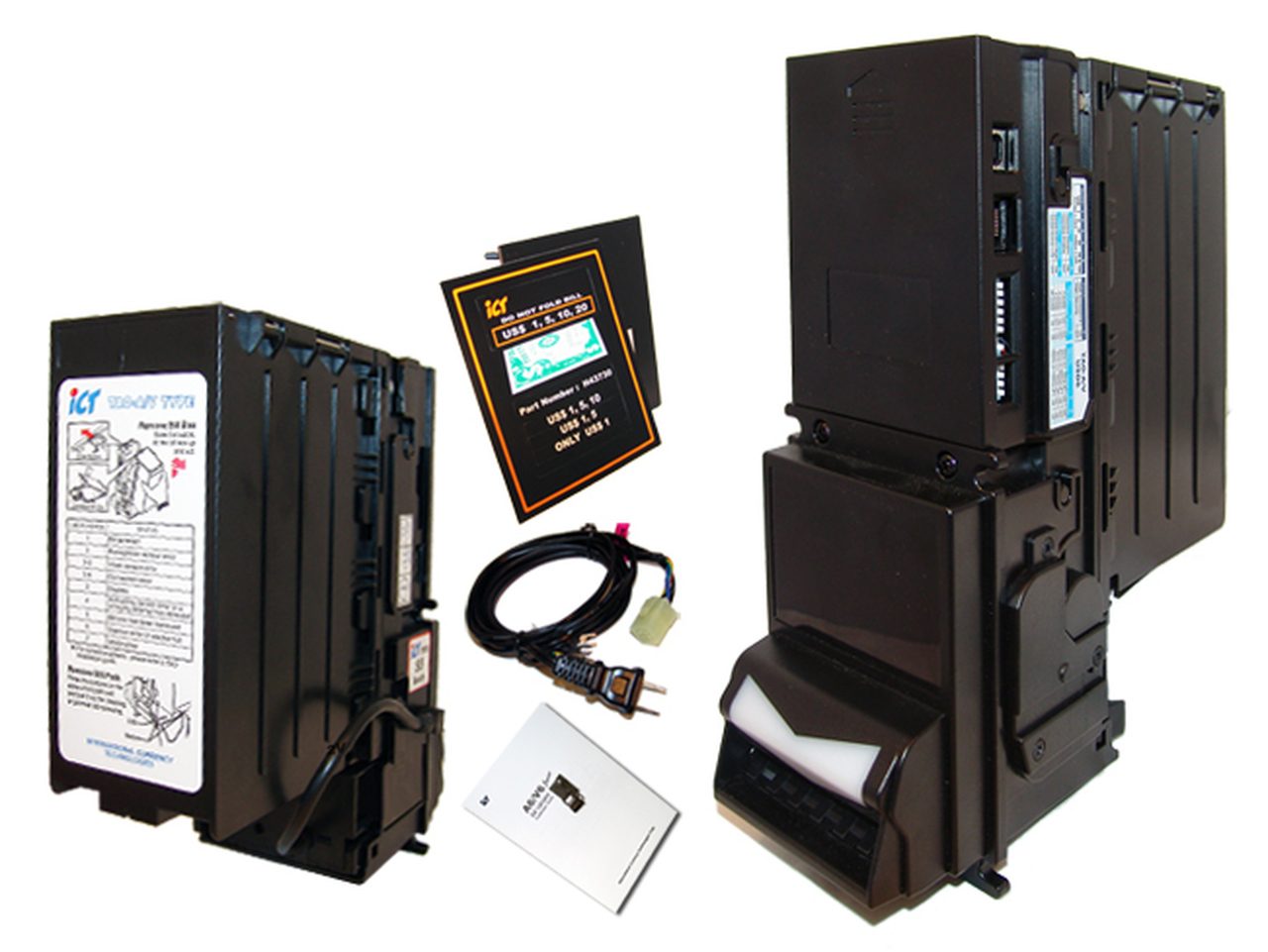

ICT TAO-A1PE5-USD6B Bill Acceptor
The ICT TAO-A1PE5-USD6B is a bill acceptor with a 500-note stacker for high-value, high-security cash acceptance.
The ICT TAO-A1PE5-USD6B bill acceptor combines a 500-note stacker with a standard bezel and a lockable removable bill cassette. It operates from the listed 110V to 117V AC input, accepts the recorded US bill denominations in four directions, and validates in about three seconds including stacking. Its available interface options are Pulse, 5V ENABLE, ICT Protocol, NISR, and USB.
E & D Trading is an authorized ICT distributor and authorized service center with more than 30 years of hands-on equipment experience. We provide programming and currency-set guidance, application fitment support, and troubleshooting assistance for TAO equipment. Our in-house service department repairs applicable units and works with customers nationwide on parts and repair submissions.
Key points
- 500-note stacker with lockable removable cassette
- Listed 110V to 117V AC operation
- Four-way bill insertion and standard bezel
- Approximately three-second validation including stacking
- Pulse, ICT Protocol, NISR, and USB interfaces listed
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
