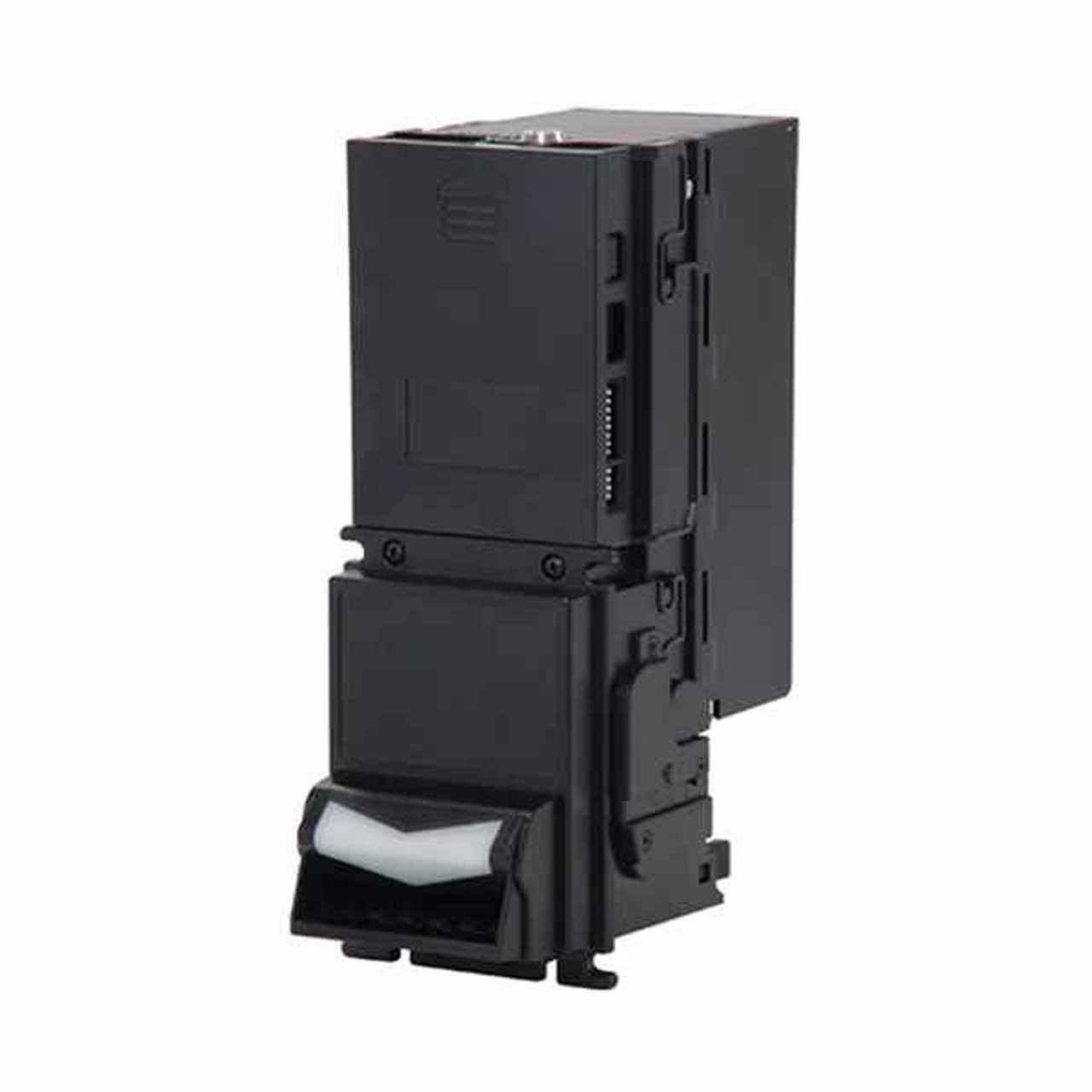

ICT TAO-A1PB5-USD6E Bill Acceptor
The ICT TAO-A1PB5-USD6E is a bill acceptor with a 500-note stacker for cash-handling applications requiring security features.
The ICT TAO-A1PB5-USD6E is a 110V to 117V AC bill acceptor with a 500-note stacker, standard bezel, and lockable removable bill cassette. It accepts the listed US bill denominations through four-way insertion. Software and currency updates are completed through the built-in Flash ROM connector, while listed interface choices include Pulse, 5V ENABLE, ICT Protocol, NISR, and USB.
For help selecting and maintaining this TAO-A model, work with E & D Trading, an authorized ICT distributor and authorized service center for more than 30 years. Our team can address programming, currency-set, and fitment questions before purchase. We offer in-house repair for applicable ICT models and nationwide service support for equipment sent in for professional evaluation.
Key points
- 500-note stacker with standard bezel
- Lockable removable bill cassette included
- Four-way insertion for listed US bill denominations
- Built-in Flash ROM connector for updates
- Listed interfaces include Pulse, NISR, and USB
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
