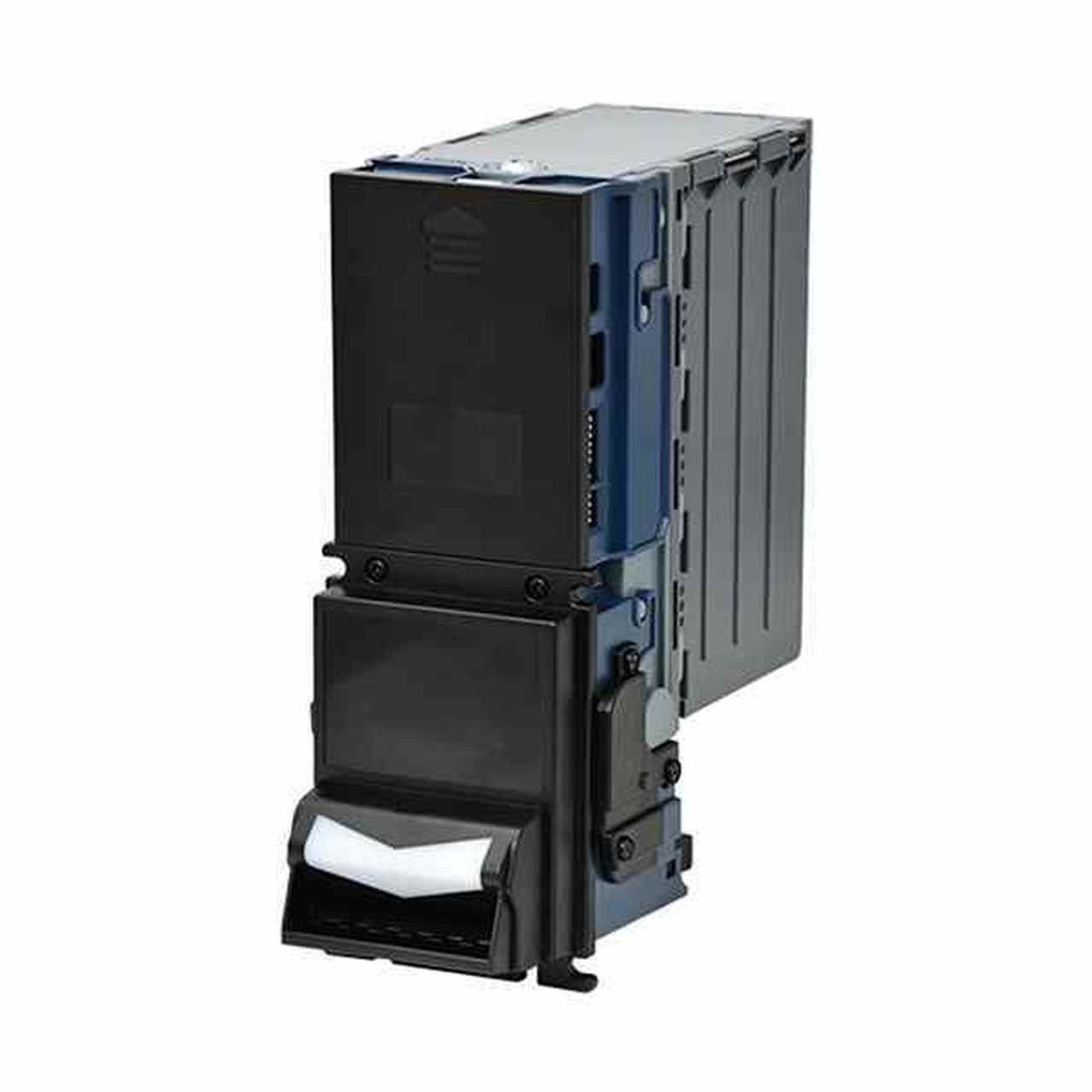

ICT TAO2V2PB5-USD6DU Bill Acceptor
The ICT TAO2V2PB5-USD6DU is a 12V TAO-II bill acceptor using pulse interface with four-way insertion and a 500 stacker.
The ICT TAO2V2PB5-USD6DU is a TAO-II bill acceptor listed with 12V operation, a pulse interface, and USD acceptance. It combines four-way bill insertion with a 500 knob stacker and standard bezel. Validation is specified at approximately three seconds including bill stacking. The configuration also includes a lockable removable bill cassette, several listed interface options, and a built-in connector for software and currency updates.
E & D Trading supports the TAO 2 line as an authorized ICT distributor and authorized service center. With over 30 years of experience, it offers programming and currency-set support, in-house repairs for this model, and nationwide shipping. Staff can also help identify configuration details before the unit is placed in service.
Key points
- 12V operation with pulse interface
- TAO-II bill acceptor configuration
- Four-way insertion and 500 knob stacker
- Lockable removable bill cassette
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
