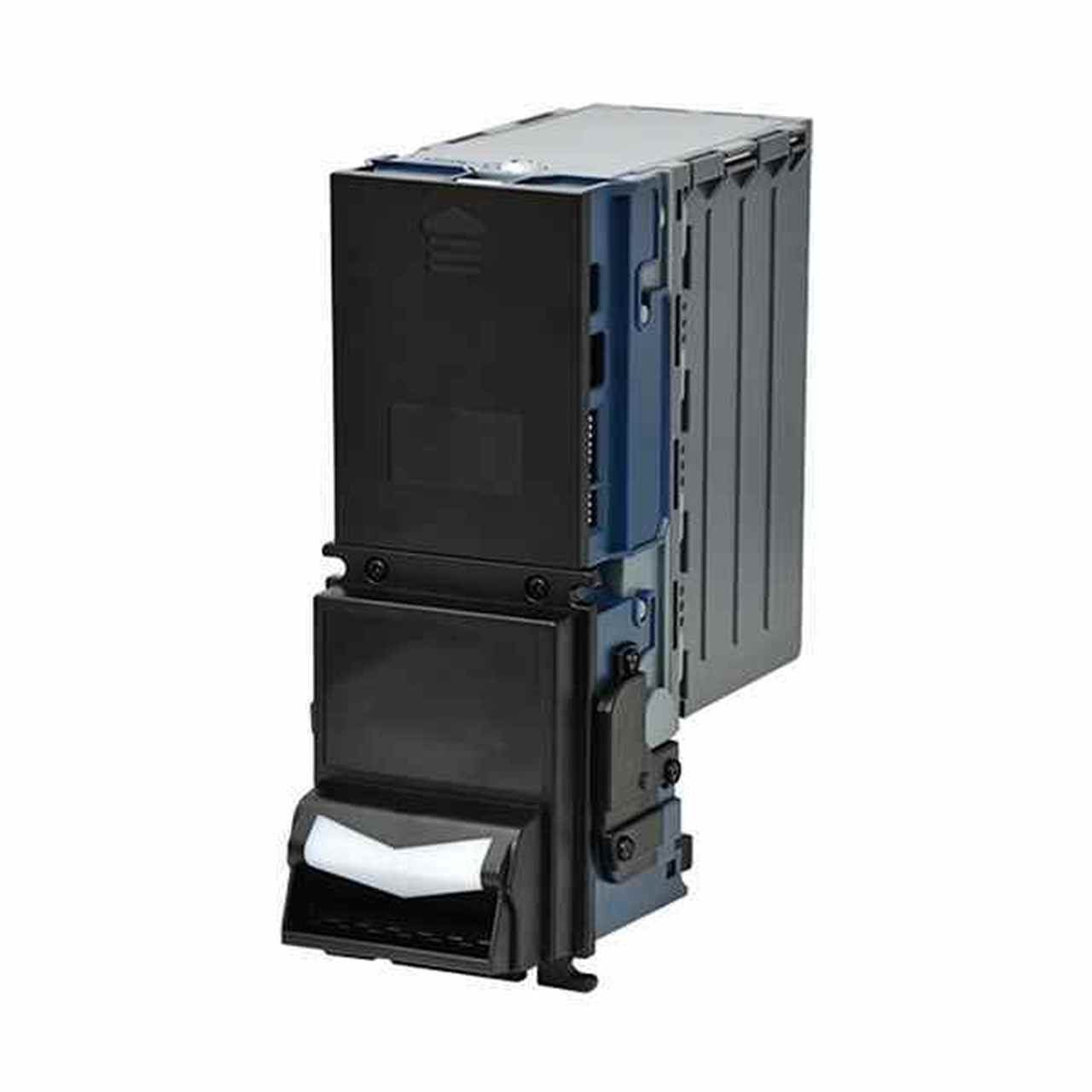

ICT TAO2A1PB5AUSD6KU Bill Acceptor
The ICT TAO2A1PB5AUSD6KU is a TAO-II bill acceptor with four-way insertion, a 500 stacker, and a removable cassette.
The ICT TAO2A1PB5AUSD6KU is a TAO-II bill acceptor with a 500 twist-knob stacker and standard bezel. It is specified for 110V and accepts the listed U.S. currency set. Four-way bill insertion and validation in approximately three seconds including stacking are part of the stated configuration. A lockable removable bill cassette and Flash ROM connector support cash handling and software or currency updates.
E & D Trading provides authorized ICT distribution and authorized service center work for this TAO 2 model. Its more than 30 years of experience includes programming and currency-set assistance, in-house repair, and nationwide shipment. Staff can also help identify configuration details before the unit is placed in service.
Key points
- TAO-II bill acceptor configuration
- Four-way bill insertion
- 500 twist-knob stacker
- Lockable removable bill cassette
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideTAO-A/V I Installation Guide (EN) PDF · 4.7 MB
- Installation guideTAO-A/V II Installation Guide (EN) PDF · 5.3 MB
- DIP switch settingsTAO-A+USD6 — 5V Enable+ICT002U+NISR+Pulse+RS232 A0+Out of Service PDF · 534 KBRead as a table
- DIP switch settingsTAO-A/V+USD6 — ICT104U+ICT104V+MDB+Pulse PDF · 35 KBRead as a table
- DIP switch settingsTAO-A/V-MXN4 (MXN2+USD2) — ICT104V+ICT104U+MDB+Pulse PDF · 425 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — ICT104V+ICT104U+MDB+Pulse PDF · 41 KBRead as a table
- DIP switch settingsTAO-A/V-MXN9 (MXN5+USD4) — MDB+Pulse PDF · 381 KBRead as a table
- DIP switch settingsTAO-V+AED7 (AED5+USD2) — MDB PDF · 33 KBRead as a table
- DIP switch settingsTAO-V+USD6 — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-MUP4 (MXP2+USD2) — MDB+Pulse PDF · 37 KBRead as a table
- DIP switch settingsTAO-V-PUN5 (PEN3+USD3) — MDB+Pulse PDF · 38 KBRead as a table
- BrochureTAO-A/V I Brochure-(EN) PDF · 290 KB
- BrochureTAO-A/V II Brochure-(EN) PDF · 309 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
