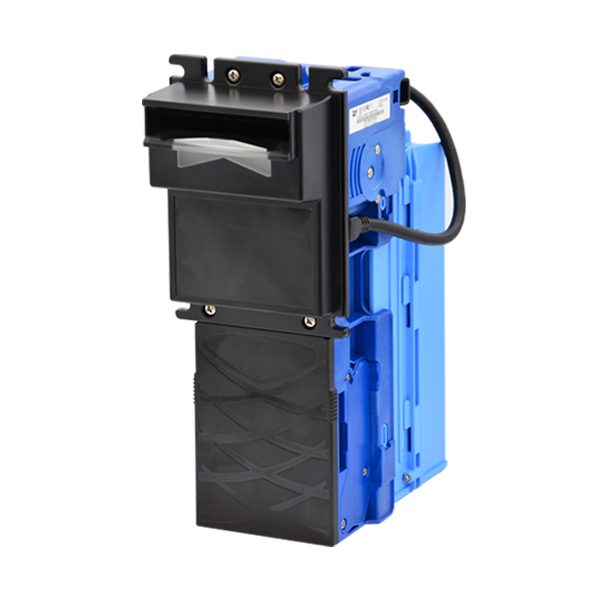

ICT XBA-mini Bill Acceptor
The ICT XBA-mini is a compact bill acceptor with wide-angle banknote insertion technology. It is specified for acceptance rates of 98% or higher and uses automatic calibration with multicolor optical sensors.
Its design addresses strong ambient light, anti-fishing protection, and severe weather conditions. ICT Superstore by E & D Trading can help match firmware and interface choices to your machine.
Key features
- Wide-angle banknote insertion supports flexible note presentation
- Specified acceptance performance of 98% or higher
- High immunity to strong ambient-light conditions
- Optical and mechanical anti-fishing structure
- Firmware updates via USB, MDB-FTL, or TTL-Serial
- Improved water-draining system for severe conditions
- Flip-up metal cash box supports service access
Typical applications
- Outdoor car washes
- Vending machines
- Amusement equipment
- Weather-exposed payment kiosks
Details and service notes
The XBA-mini is built for demanding unattended cash environments. Wide-angle insertion gives customers more flexibility at the payment opening, while high immunity to strong ambient light supports use where lighting conditions can interfere with ordinary validators. The advanced optical and mechanical anti-fishing structure adds protection to the note path.
Service options are a major part of the design. Firmware can be updated through USB, MDB-FTL, or TTL-Serial, and the unit has a flip-up metal cash box plus an improved water-draining system. The stated mean time between failures is 300,000 cycles. Confirm the required interface and installation conditions before selecting a replacement or integration package.
For XBA-mini service, record the installed firmware method and interface at each location. That gives technicians a practical starting point when preparing updates or investigating a cash-acceptance concern.
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideXBA-mini Installation Guide (EN) PDF · 4.0 MB
- DIP switch settingsXBA mini-KRW8 (KRW4+USD4) — ICT104U PDF · 215 KBRead as a table
- DIP switch settingsXBA mini-MXN8 (MXP4+USD4) — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 442 KBRead as a table
- DIP switch settingsXBA mini-UMR12(USD6+MYR6) — PULSE+ICT104U PDF · 370 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT-BC+Pulse PDF · 35 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Pulse PDF · 424 KBRead as a table
- DIP switch settingsXBA mini-USD6 — ICT104U+ICT104V+JPSTD+MDB+Special Pulse PDF · 38 KBRead as a table
- BrochureXBA-mini Brochure (EN) PDF · 368 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
Frequently asked questions
How can XBA-mini firmware be updated?
Is the XBA-mini suitable for bright locations?
