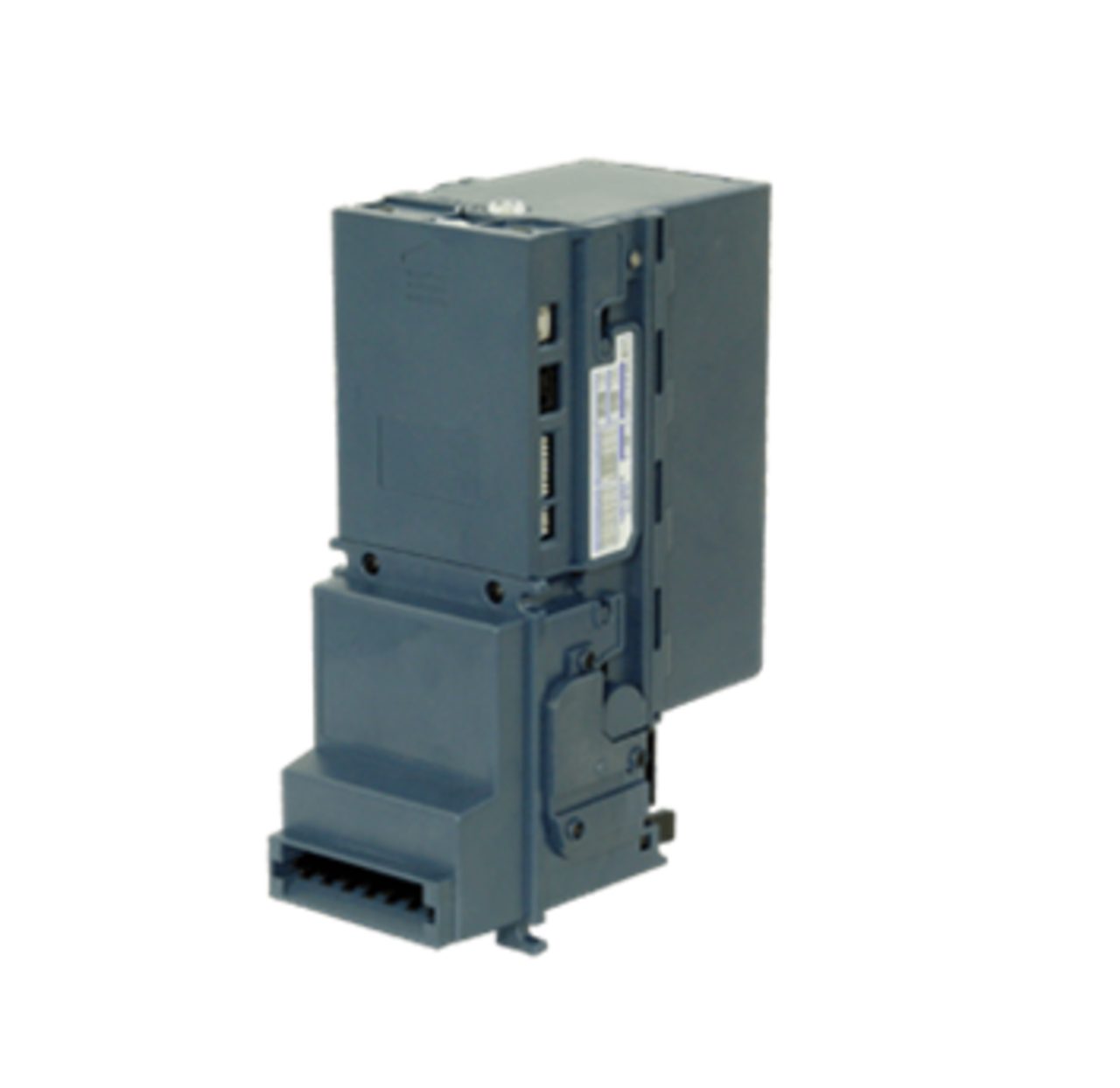

ICT LX7-2PA2USD64 Bill Acceptor
The LX7-2PA2USD64 is an LX7 Series bill acceptor for indoor and open-air equipment, with weather-resistant construction and a removable cash box.
The ICT LX7-2PA2USD64 is an LX7 Series bill acceptor designed for indoor and open-air applications. Its documented design is water resistant and weather resistant, with a drainage path for protection against water and humidity. The unit has a removable cash box with a selectable plastic handle or tubular bolt, plus a standard bezel, pulse interface, 12V operation, and a frame mounting kit.
This model is supported nationwide by E & D Trading, an authorized ICT distributor and authorized service center with over 30 years in the business. Staff can help with programming and currency-set questions before purchase and provide in-house repair when service is needed. Documented model matching is reviewed as part of that support.
Key points
- Water-resistant and weather-resistant design with a documented drainage path
- Removable cash box with selectable handle or tubular bolt
- Documented for indoor and open-air equipment applications and conditions
- Standard bezel, pulse interface, and 12V operating configuration
- Listed with a frame mounting kit as documented configuration
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guideLX7 Installation Guide (EN) PDF · 3.6 MB
- Installation guideLX7 with AC110V Pulse/NISR Converter Board Installation Guide (EN) PDF · 4.4 MB
- DIP switch settingsV7E+/LX7-ANG8 (ANG2+AWG2+USD4) — MDB PDF · 31 KBRead as a table
- DIP switch settingsV7E+/LX7-BUD6 (BBD3+USD3) — ICT104U+MDB+Pulse PDF · 446 KBRead as a table
- DIP switch settingsV7E+/LX7-USD6 — ICT002U+MDB+Pulse+RS232 A0 PDF · 504 KBRead as a table
- DIP switch settingsV7E+/LX7-USD6 — ICT002U+NISR+Pulse+RS232 A0 PDF · 444 KBRead as a table
- DIP switch settingsV7E+/LX7-XCD6(USD3+XCD3) — ICT104U+ICT104V+MDB+Pulse PDF · 415 KBRead as a table
- BrochureLX7 Series Brochure (EN) PDF · 294 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
