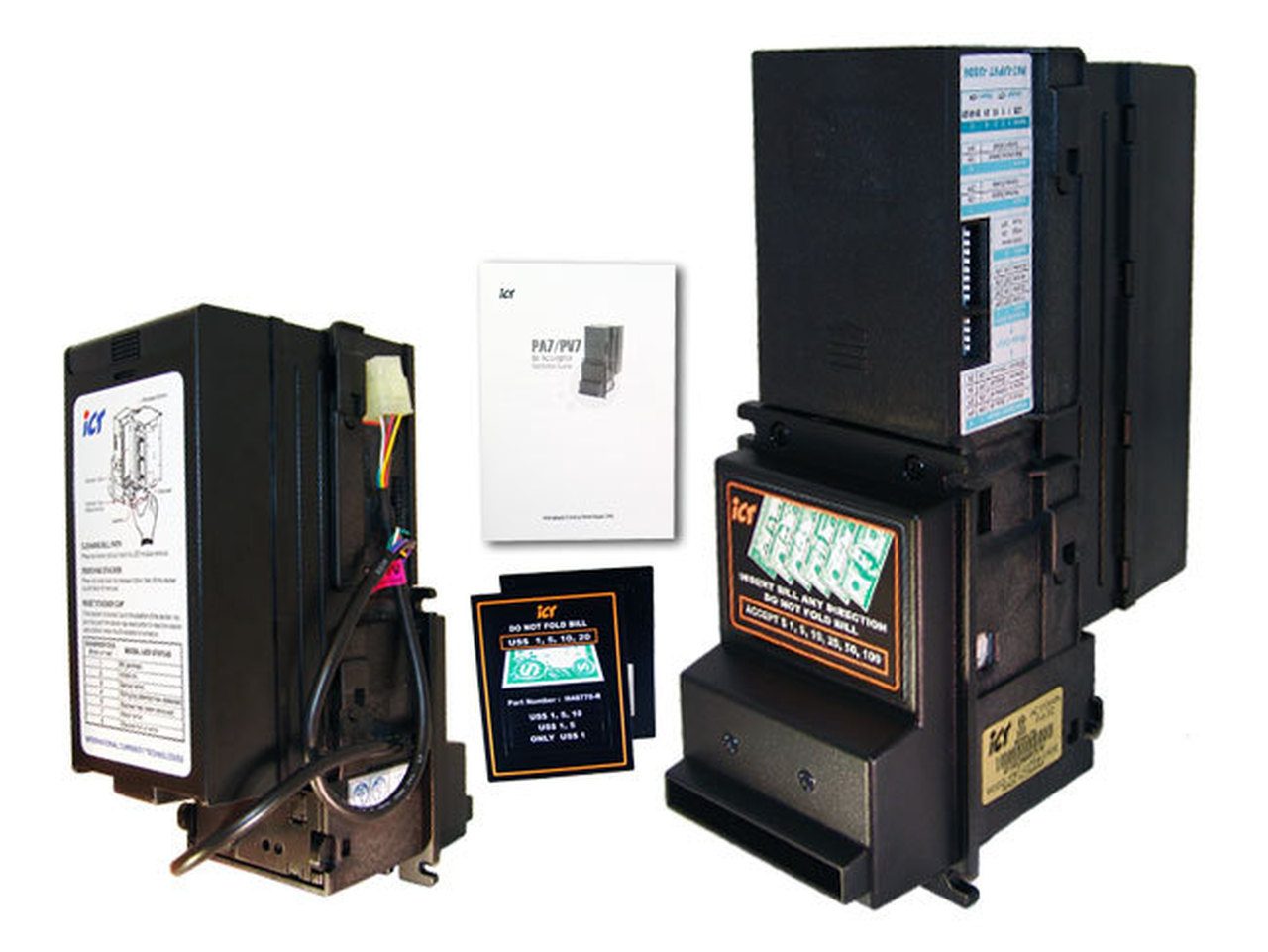

ICT PA7-E1PB8-USD6 Bill Acceptor
The ICT PA7-E1PB8-USD6 is a multi-protocol bill acceptor with a stacker for redemption-focused cash-handling applications.
The ICT PA7-E1PB8-USD6 is a multi-protocol bill acceptor with an 800-note stacker and built-in anti-stringing device. It accepts the listed US bill denominations in four insertion directions, validates and stacks in about three seconds, and uses optical sensors to read both bill sides. Its protocol selection can be customized with dip switches, while a harness change accommodates multiple power sources.
E & D Trading is an authorized ICT distributor and authorized service center with more than 30 years of experience. Before purchase, our team can discuss PA7 programming, currency-set requirements, harness considerations, and fitment. We also perform in-house repair on PA7 models and support customers nationwide with parts and service for equipment sent in.
Key points
- 800-note stacker with built-in anti-stringing device
- Four-way bill insertion and approximately three-second validation
- Optical sensors read both sides of each bill
- Flash ROM programming with accessible dip switches
- May replace an ICT N6 bill acceptor
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guidePA7/PA7-U Installation Guide (EN) PDF · 3.7 MB
- DIP switch settingsPA7-U-USD6 — 5V ENABLE+NISR+Pulse+RS232 PDF · 436 KBRead as a table
- BrochurePA7/PA7-U Brochure (EN) PDF · 284 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
