ICT AZB-22 Anti-Zapper Board

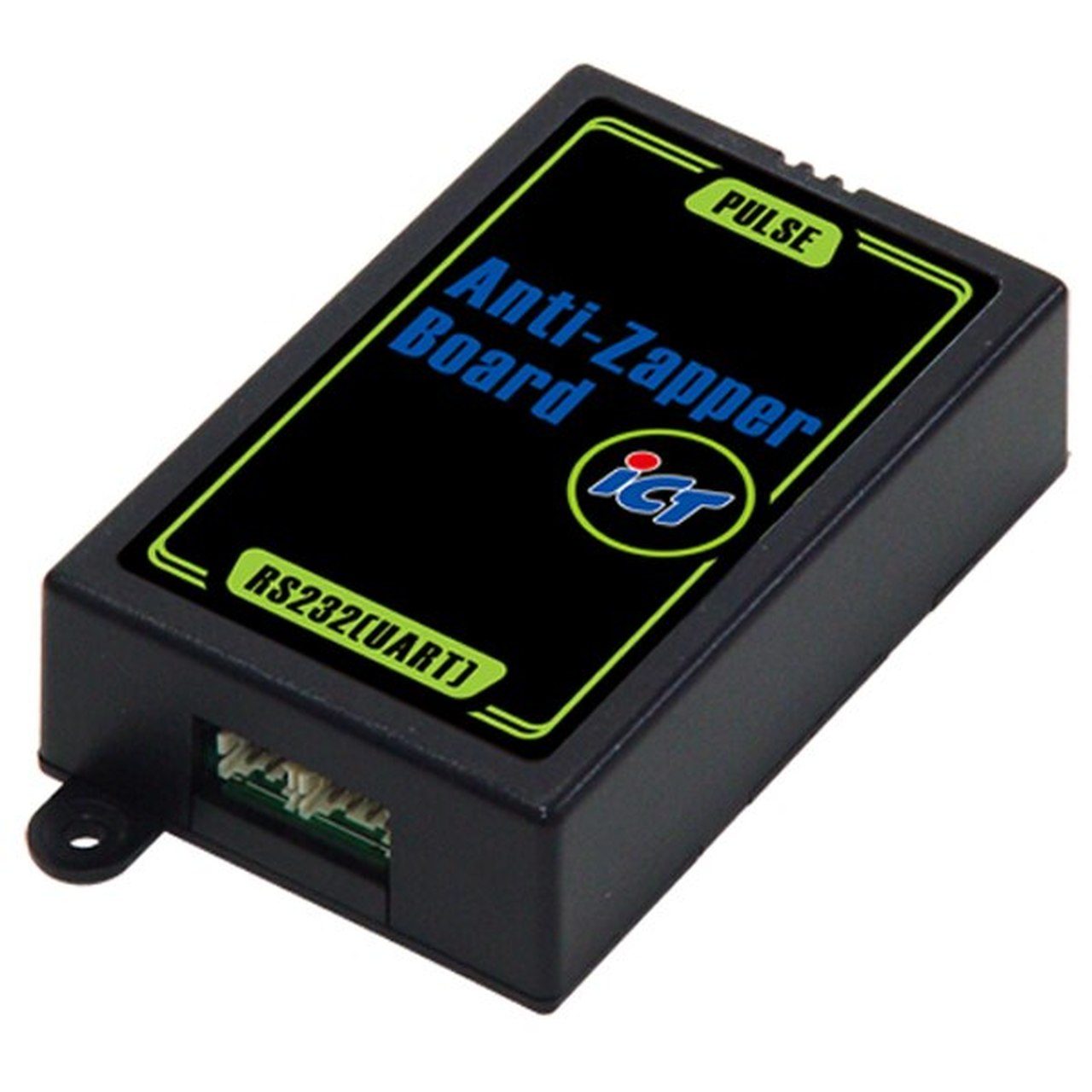

The AZB-22 is an anti-zapper board for the documented LX7 bill acceptor models operating at 12V.
The ICT AZB-22 anti-zapper board is intended for the documented LX7 bill acceptors operating at 12V. It transfers RS232 (UART) communication to Pulse and is designed for use under standard conditions. The board is intended to protect listed supported acceptors from interference generated by certain EMP devices, making exact model and voltage matching important.
For an authorized source and service path, E & D Trading supplies this model as an authorized ICT distributor and authorized service center. Its 30-plus years of experience supports programming help, currency-set review, in-house repair, and nationwide shipping. Documented model matching is reviewed as part of that support.
Key points
- Compatible with documented LX7 bill acceptor models only
- For documented 12V model configurations within listed equipment groups
- Transfers documented RS232 UART communication interface to Pulse operation
- Designed to address certain EMP-device interference in supported installations
Manuals & DIP switch settings
Official ICT documentation, mirrored here so the links do not rot. We are an authorized ICT distributor and service center — if a sheet does not match the unit in front of you, call (877) 922-6707 and we will identify it from the label.
- Installation guidePA7/PA7-U Installation Guide (EN) PDF · 3.7 MB
- DIP switch settingsPA7-U-USD6 — 5V ENABLE+NISR+Pulse+RS232 PDF · 436 KBRead as a table
- BrochurePA7/PA7-U Brochure (EN) PDF · 284 KB
DIP switch sheets are also transcribed into readable tables so you can set the switches straight from your phone.
